Here is my code, first one shows what should happen (roughly) when there is no bug. It draws some small arcs, but they are big enough not to be noticible:

use GD;

my $size=500;
my $scale=20;
my $yinvert=-1;
my ($xcenter,$ycenter)=(19.5,-5);



my $i = new GD::Image($size,$size);

  $white  = $i->colorAllocate(255,255,255);
  $black  = $i->colorAllocate(0,0,0);
  $blue   = $i->colorAllocate(0,0,255);
  $dred   = $i->colorAllocate(128,0,0);
  $bred   = $i->colorAllocate(255,0,0);
  $green  = $i->colorAllocate(0,255,0);


sub scaled # scale distances
{
    my (@xyus)=@_;  # unscaled xy pairs or distances.
    my @xys;        # scaled xy pairs
    while (@xyus)
    {
        my $x=$xyus[0];
        push(@xys, $x*$size/$scale);
        shift(@xyus);
    }
    return (@xys);
}
sub scale
{

    my (@xyus)=@_;  # unscaled xy pairs or distances.
    my @xys;        # scaled xy pairs
    while (@xyus)
    {
        my $x=$xyus[0]-$xcenter;
        my $y=$xyus[1]-$ycenter*$yinvert;
        push(@xys, $x*$size/$scale+$size/2,$y*$size/$scale*$yinvert+$s
+ize/2);
        shift(@xyus); shift(@xyus);
    }
    return (@xys);
}

# first draw some radial lines at 0.25 degree intervals.
# the lines are 1 unit long and centered at the point 20,0.

my $pi=4.0 * atan2(1, 1);
my $rad=$pi/180.0;  # to radions convert factor
my $deg=180.0/$pi; #  to degrees convert factor.

my $v1=19;  # vector lengths of lines being drawn from v1 to v2.
my $v2=21;

my $astep=10;
my $oldangle;
for my $j (0..4)
{

  my $angle=$astep*$j;

  my $startx=$v1*cos($angle*$rad);
  my $starty=$v1*sin($angle*$rad);
  my $endx=$v2*cos($angle*$rad);
  my $endy=$v2*sin($angle*$rad);
  $i->line(scale($startx,$starty,$endx,$endy),$blue); # radial lines

  # now we draw some arcs, always 1 degree long, but starting at steps
+ of 0.1 degree
  # we draw the lowest arc nearest the center, ie 1 to 2 deg, then 1.1
+ to 2.1 deg further out and so on.
  # angles are clockwise, and our +ve direction is acw, so in fact we
+start at
  # 359 to 360, then further out 359.1 to 360.1, and so on
  for my $k (0..10)
  {
     my $kstep=1;
     my $kmove=0.2;
     $i->arc(scale(0,0),scaled(2*$v1+$k*$kmove,2*$v1+$k*$kmove),360-$a
+ngle-$k*$kstep,360-$oldangle-$k*$kstep,$bred) if ($j%8==1);
  }
  $oldangle=$angle;
}



my $file="gdbug1.png";
open(F,">".$file) or die "Cannot open file ".$file;
binmode F;
print F $i->png;
close F;
[download]

use GD;

my $size=500;
my $scale=4.5;
my $yinvert=-1;
my ($xcenter,$ycenter)=(19.5,-1.5);



my $i = new GD::Image($size,$size);

  $white  = $i->colorAllocate(255,255,255);
  $black  = $i->colorAllocate(0,0,0);
  $blue   = $i->colorAllocate(0,0,255);
  $dred   = $i->colorAllocate(128,0,0);
  $bred   = $i->colorAllocate(255,0,0);
  $green  = $i->colorAllocate(0,255,0);


sub scaled # scale distances
{
    my (@xyus)=@_;  # unscaled xy pairs or distances.
    my @xys;        # scaled xy pairs
    while (@xyus)
    {
        my $x=$xyus[0];
        push(@xys, $x*$size/$scale);
        shift(@xyus);
    }
    return (@xys);
}
sub scale
{

    my (@xyus)=@_;  # unscaled xy pairs or distances.
    my @xys;        # scaled xy pairs
    while (@xyus)
    {
        my $x=$xyus[0]-$xcenter;
        my $y=$xyus[1]-$ycenter*$yinvert;
        push(@xys, $x*$size/$scale+$size/2,$y*$size/$scale*$yinvert+$s
+ize/2);
        shift(@xyus); shift(@xyus);
    }
    return (@xys);
}

# first draw some radial lines at 0.25 degree intervals.
# the lines are 1 unit long and centered at the point 20,0.

my $pi=4.0 * atan2(1, 1);
my $rad=$pi/180.0;  # to radions convert factor
my $deg=180.0/$pi; #  to degrees convert factor.

my $v1=19;  # vector lengths of lines being drawn from v1 to v2.
my $v2=20;

my $astep=1;
my $oldangle;
for my $j (0..7)
{

  my $angle=$astep*$j;

  my $startx=$v1*cos($angle*$rad);
  my $starty=$v1*sin($angle*$rad);
  my $endx=$v2*cos($angle*$rad);
  my $endy=$v2*sin($angle*$rad);
  $i->line(scale($startx,$starty,$endx,$endy),$blue); # radial lines

  # now we draw some arcs, always 1 degree long, but starting at steps
+ of 0.1 degree
  # we draw the lowest arc nearest the center, ie 1 to 2 deg, then 1.1
+ to 2.1 deg further out and so on.
  # angles are clockwise, and our +ve direction is acw, so in fact we
+start at
  # 359 to 360, then further out 359.1 to 360.1, and so on
  for my $k (0..20)
  {
     my $kstep=0.1;
     my $kmove=0.1;
     $i->arc(scale(0,0),scaled(2*$v1+$k*$kmove,2*$v1+$k*$kmove),360-$a
+ngle-$k*$kstep,360-$oldangle-$k*$kstep,$bred) if ($j%8==1);
  }
  $oldangle=$angle;
}



my $file="gdbug2.png";
open(F,">".$file) or die "Cannot open file ".$file;
binmode F;
print F $i->png;
close F;
[download]

The png file on a system with no bug will show a smoothly varying set of red arcs, that do not all start and stop on the blue radial lines. On a system with the bug, all red arcs start and stopco-incident with blue radial (straight) lines.

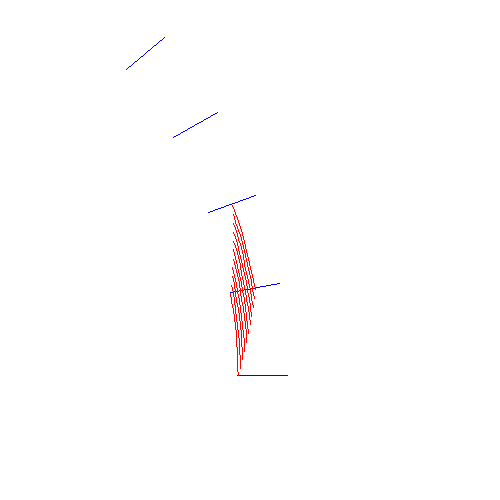

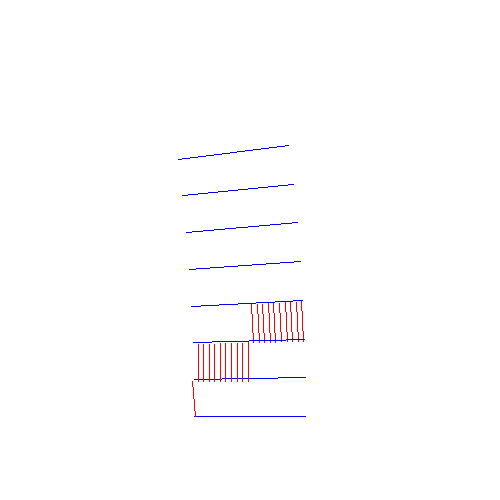

The first and second code samples generate these two png files on my system:

Ok, well nearly and clearly faulty
The second of these shows cleary the suspect behaviour.
