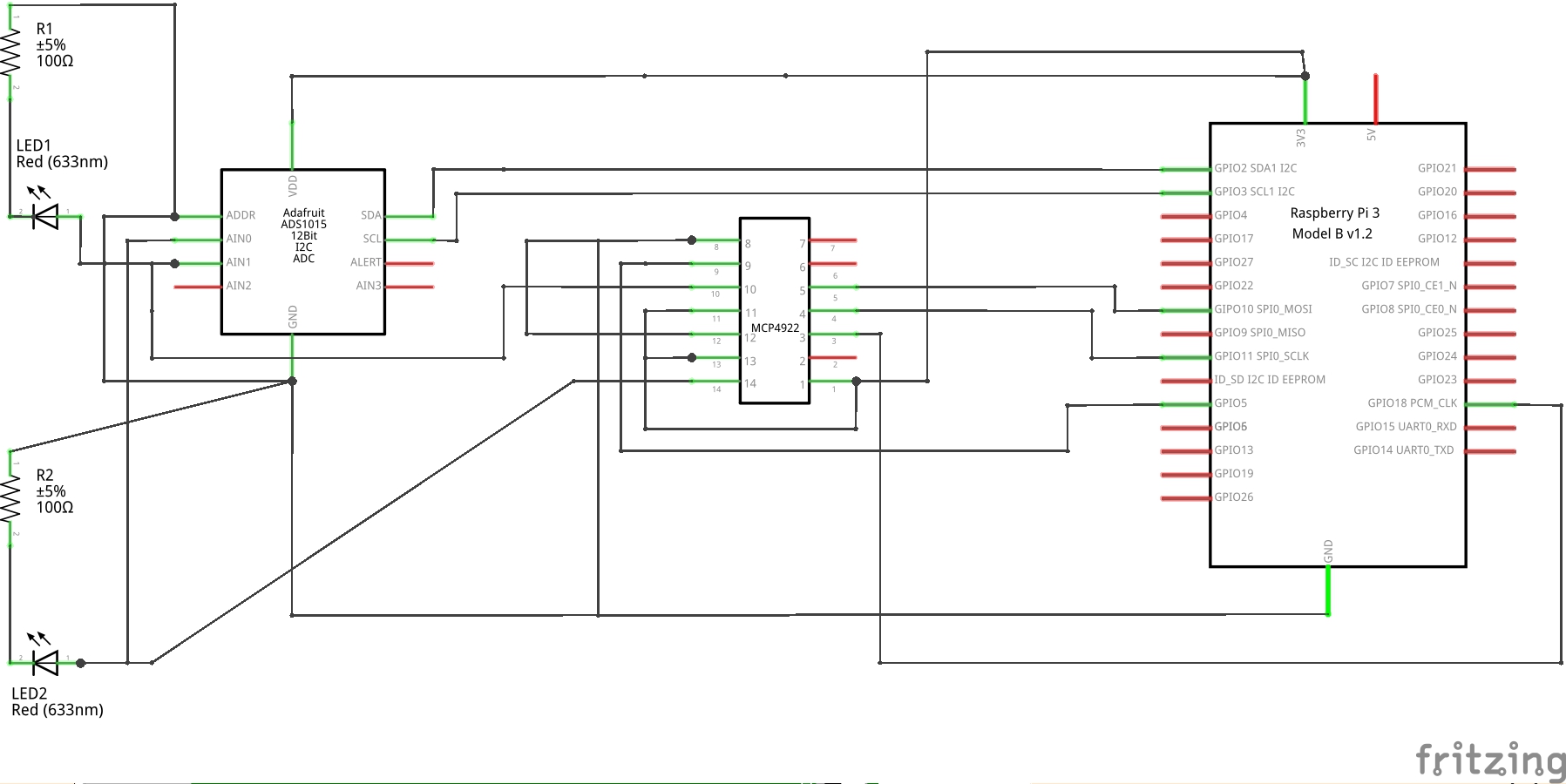

I've been writing a lot of software lately that deals with direct hardware access (specifically analog and digital hardware for the Raspberry Pi). This means that I've had to learn some C, as well as get proficient with bit manipulation and the bitwise operators.
As part of my learning, I thought I'd write a module to do this bit manipulation for me, hence Bit::Manip was born. (There's also a Bit::Manip::PP for those who can't/don't want to use XS. It should be indexed shortly).
Here's a scenario based example of how the software can be used.
You have a 16-bit configuration register for a piece of hardware that you want to configure and send in. Here's the bit configuration:
|<--------- 16-bit config register ---------->| | | | |---------------------------------------------| | | | | | | |<------Byte 1: Control------>|<-Byte0: Data->| | | | |-----------------------------|---------------| | 15 | 14 13 | 12 11 | 10 9 8 | 7 6 5 4 3 2 1 | __ _____ _____ ______ _____________ ^ ^ ^ ^ ^ | | | | | START | | UNUSED DATA CHANNEL | PIN SELECT
...and the bit configuration:
15: Start conversation 0 - do nothing 1 - start conversation 14-13: Channel selection 00 - channel 0 01 - channel 1 11 - both channels 12-11: Pin selection 00 - no pin 01 - pin 1 11 - pin 2 10-8: Unused (Don't care bits) 7-0: Data
Let's start out with a 16-bit word, and set the start bit. Normally, we'd pass in an actual value as the first param ($data), but we'll just set bit 15 on 0 to get our initial data.
my $data = bit_on(0, 15);
A couple of helper functions to verify that we indeed have a 16-bit integer, and that the correct bit was set:
say bit_count($data); say bit_bin($data);
Output to ensure we're good:
16 1000000000000000
Now, we've got the conversation start bit set in our register, and we want to set the channel. Let's use both channels. For this, we need to set multiple bits at once. The datasheet says that the channel is at bits 14-13. Take the LSB (13), pass it along with the data to bit_set(), the number of bits we're intending to update (2) and as the last parameter, put the binary bit string that coincides with the option you want (0b11) for both channels):
# setting channel $data = bit_set($data, 13, 2, 0b11); # result: 1110000000000000
We'll use pin 1, and per the datasheet, that's 0b01 starting from bit 11 (again, we're setting 2 bits):
# setting pin $data = bit_set($data, 11, 2, 0b01); # result: 1110100000000000
The next two bits are unused, so we'll ignore them, and set the data. Let's use 186 as the data value (10111010 in binary). We're setting 8 bits here:
# setting data $data = bit_set($data, 0, 8, 186); # or: bit_set($data, 0, 8, 0b10111010); # result: 1110100010111010
Now we realize that we made a mistake above. We don't want both channels after all, we want to use only channel 1 (value: 0b01). Since we know exactly which bit we need to disable (14), we can just turn it off:
$data = bit_off($data, 14); # result: 1010100010111010
(You could also use bit_set() to reset the entire channel register bits (14-13) like we did above).
Let's verify that we've got the register configured correctly before we send it to the hardware. We use bit_get() for this. The 2nd and 3rd parameters are MSB and LSB respectively, and in this case, we're only checking the 1-bit start bit, so MSB and LSB are the same:
my $value = bit_get($data, 15, 15); say bit_bin($value); # result: 1
So yep, our start bit is set. Let's verify the rest:
# data # (note no LSB param. We're reading from bit 7 through to 0). # since we readily know the data value in decimal (186), we don't # need to worry about the binary representation say bit_get($data, 7); # result 186 # channel say bit_bin(bit_get($data, 14, 13)); # result 1 # pin select say bit_bin(bit_get($data, 12, 11)); # result 1 # ensure the unused bits weren't set say bit_get($data, 10, 8);
So now we've set up all of our register bits, and confirmed it's ready to be sent to the hardware for processing.
Perl has some handy features for making binary conversions very easy:
# use a binary number directly: say 0b101; # 5 # format a number into a binary string, and print it printf("%b\n", 254); # 11111110 # convert a number to a binary string, and assign it my $bin = sprintf("%b", 127); # 1111111
Disclaimer: also posted at blogs.perl.org.
update: updated to reflect a bug fix talked about later in the replies./update
|
|---|
